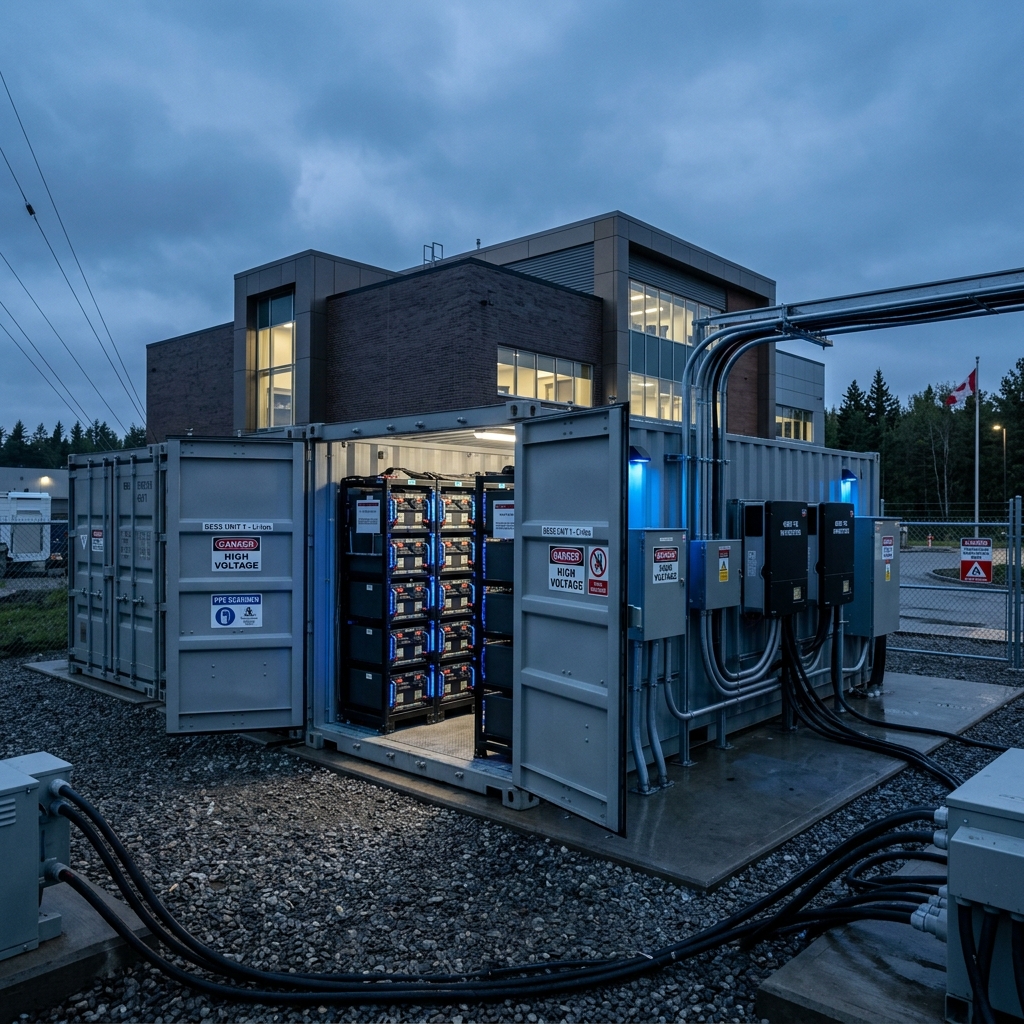

Battery Energy Storage Systems (BESS): The Complete Electrical Design Guide for Ontario
Battery energy storage is no longer experimental - it's a fast-growing part of Ontario's electrical infrastructure. From peak shaving in commercial buildings to grid-scale renewable integration, BESS projects are accelerating. But the electrical design requirements are complex, spanning CEC rules, UL certifications, fire codes, and utility interconnection agreements. This guide covers everything an engineer or building owner needs to know.
Why BESS is Exploding in Ontario
Three forces are driving BESS adoption across Ontario:
- Global Adjustment charges: Ontario's Class A customers pay Global Adjustment based on their share of the top five peak hours - BESS peak shaving in those hours can cut this charge
- Solar + Storage economics: With net metering evolving, behind-the-meter storage maximizes self-consumption of on-site solar generation
- EV charging demand: Level 3 DC fast chargers create massive demand spikes - BESS buffers these peaks without costly utility upgrades
Applicable Codes and Standards
BESS design in Ontario requires compliance with a matrix of overlapping codes. Missing even one can halt your project:
| Standard | Scope | Why It Matters |
|---|---|---|
| OESC (CSA C22.1:24 + Ontario amendments) | All electrical wiring and connections | Foundational - every conductor, disconnect, and overcurrent device must comply |
| ANSI/CAN/UL 9540 (BMS: CSA C22.2 No. 340) | Complete BESS system safety | System-level certification - batteries + inverters + controls tested together |
| UL 1973 | Battery cell and module safety | Ensures individual battery units meet thermal, mechanical, and electrical safety |
| UL 9540A | Thermal runaway fire propagation | Commonly requested by fire and building officials to assess worst-case fire scenarios |
| NFPA 855 | Installation of stationary energy storage | Siting, separation distances, ventilation, fire suppression requirements |
| CSA C22.2 No. 107.1 / UL 1741 | Inverter safety and grid interconnection | Anti-islanding protection - prevents backfeeding the grid during outages |
| Ontario Building Code (OBC) | Building integration | Structural loads, fire ratings, egress paths near BESS installations |
| ESA Bulletin 64-7-3 | Ontario-specific requirements | ESS approval: certified to ANSI/CAN/UL 9540 or field-evaluated (OESC Rule 2-024) |
BESS Sizing: The Engineering Process
Proper BESS sizing starts with understanding your load profile. The key parameters:
| Parameter | Unit | How to Determine |
|---|---|---|
| Peak demand | kW | 12-month utility billing data - highest 15-min demand reading |
| Target demand reduction | kW | Financial analysis - how much peak shaving pays back within ROI target |
| Discharge duration | hours | Load profile analysis - how long does the peak typically last? |
| Energy capacity | kWh | kW × hours ÷ depth of discharge factor (typically 80-90% for lithium-ion) |
| Round-trip efficiency | % | Typically 85-92% for lithium-ion - energy lost in charge/discharge cycle |
Example: A commercial building with a 500 kW target demand reduction (not its peak demand) and 2-hour peaks needs a minimum 500 kW / 1,000 kWh system. Accounting for 85% depth of discharge and about 95% discharge-path efficiency (battery and inverter, roughly half the losses of a 90% round trip): 1,000 ÷ 0.85 ÷ 0.95 ≈ 1,238 kWh at beginning of life. Then add an end-of-life degradation allowance: divide by the end-of-life capacity fraction the manufacturer warrants to set the nameplate capacity.
Electrical System Architecture
A BESS connects to the building's electrical system through several critical components:
- Battery modules: Lithium-ion (LFP or NMC chemistry) rack-mounted in climate-controlled enclosures
- Battery Management System (BMS): Monitors cell voltage, temperature, and state of charge - triggers shutdown on anomaly
- Bidirectional inverter: Converts DC battery power to AC (and vice versa) - must be certified to CSA C22.2 No. 107.1 (UL 1741 in the US)
- AC disconnect: Visible, lockable disconnect per CEC - required at the point of common coupling (PCC)
- DC disconnect and fusing: String-level protection per CEC Section 64 - sized for maximum fault current
- Revenue-grade metering: Required by utility for net metering or demand response program participation
Utility Interconnection: Hydro One & Toronto Hydro
Connecting a BESS to the grid in Ontario requires formal utility approval. The process mirrors new service connections but adds energy export considerations:
- Connection Impact Assessment (CIA): Generally required above the micro-embedded limit (>12 kW since May 1, 2026) - utility evaluates grid capacity to accept your system
- Anti-islanding protection: OESC Section 84 and the utility's technical requirements (e.g. CSA C22.3 No. 9) - prevents energizing the grid during utility outages
- Protection relay coordination: Must coordinate with utility's relay settings to prevent nuisance tripping
- ESA permit: Ontario electrical permit required - ESA inspects the complete installation
Fire Safety: The Critical Design Constraint
Lithium-ion battery fires are rare but catastrophic. Fire and building officials are increasingly scrutinizing BESS installations. Key requirements per NFPA 855 (a reference standard, not adopted by Ontario regulation):
| Requirement | Indoor Installation | Outdoor Installation |
|---|---|---|
| Fire-rated room | 2-hour fire rating minimum | N/A (separation distance instead) |
| Separation distance | N/A | 3 m from buildings; unit spacing per NFPA 855 or test data |
| Ventilation | Mechanical - sized for thermal runaway gas volume | Natural ventilation typically sufficient |
| Fire suppression | Automatic sprinklers (NFPA 13); alternatives only where testing supports them | Fire department access required |
| Gas detection | Where part of the NFPA 69 explosion-prevention design (confirm with the product's UL 9540A data) - H2, CO, and VOC sensors | Inside containerized systems, where part of the NFPA 69 explosion-prevention design (confirm with the product's UL 9540A data) |
| Explosion control | Deflagration venting or suppression | Container venting per UL 9540A test results |
| Signage | CE Code Rule 2-306 (CSA Z462) + NFPA 855 labels on all access points | Same - plus reflective markers for night access |
UL 9540A test data is a key document fire and building officials may request. It proves your specific battery chemistry has been tested for thermal runaway propagation at the cell, module, and unit level. Have the UL 9540A report ready before permit review.
Common Design Mistakes
- Undersizing conductors: BESS operates at high DC currents - voltage drop on DC strings directly reduces efficiency and can cause overheating
- Ignoring harmonics: Bidirectional inverters inject harmonics - harmonic limits (often IEEE 519) may be required by the utility at the PCC
- Missing arc flash analysis: BESS DC systems can sustain arcs - arc flash studies must include the battery system
- No grounding study: DC grounding in BESS systems requires careful analysis - improper grounding can create stray current and corrosion issues
- Skipping the load study: Without a proper load calculation, BESS systems are either oversized (wasted capital) or undersized (insufficient peak shaving)
Frequently Asked Questions
What codes govern BESS in Ontario?
ANSI/CAN/UL 9540, OESC Section 64, NFPA 855 (reference only in Ontario) and CSA C22.2 No. 340 (BMS). See our solar PV guide for related standards.
How do you size a BESS?
Load profile analysis, use case definition, discharge duration, and degradation factor. See our load calculation guide.
What fire safety is needed for BESS?
NFPA 855 for spacing/ventilation, UL 9540A thermal runaway testing, and 2-hour fire separation for indoor installations.
